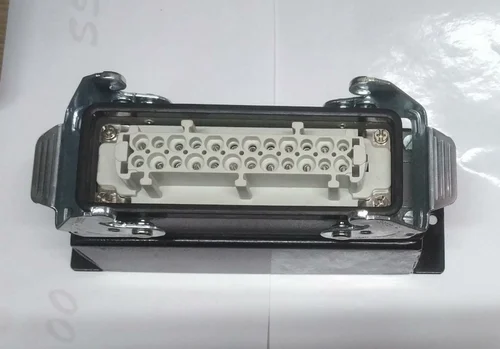

24-Pin Hot Runner Connector

A 24-pin hot runner connector is designed to carry both heater power and thermocouple signals through a single compact connector. It is commonly used in molds with multiple heating zones, reducing the number of individual cables and improving installation efficiency.

Key Features

• 24-pin configuration for multiple heater and thermocouple circuits.
• High-temperature resistant housing for harsh molding environments.
• Secure locking mechanism to prevent accidental disconnection.
• Durable metal contacts with excellent electrical conductivity.
• Compact design for easy installation and maintenance.
• Resistant to vibration, heat, and industrial wear.

Applications

• Plastic injection molding machines
• Hot runner manifold systems
• Multi-cavity molds
• PET preform molds
• Automotive plastic component manufacturing
• Packaging and medical molding industries

Benefits

• Simplifies wiring by combining multiple circuits into one connector.
• Ensures reliable electrical connections for heaters and sensors.
• Improves temperature control accuracy.
• Reduces maintenance time and installation errors.
• Increases system reliability and production efficiency.

Technical Specifications (Typical)

• Number of Pins: 24
• Operating Temperature: Up to 200–350°C (depending on the connector design)
• Voltage Rating: Typically 250–600 V
• Current Rating: Commonly 10–16 A per contact (varies by model)
• Contact Material: Brass or copper alloy with silver or gold plating
• Insulation Material: High-temperature thermoplastic or ceramic
